Builder: Alan Jurgens

Finish: Tinted texture (colour: Linseed)

Substrate: 100mm Masterwall cladding on timber frame (R.Value of 2.7 for panel alone) for upper floor extension. Blue-board & brick on ground floor areas.

The owners of this place had a real vision to transform their living space, and they committed to it for the long haul. Paul & Jenny were very careful when selecting their cladding: they asked us for addresses so that they could see and touch completed works for themselves; although, aesthetic wasn’t all they were thinking of. We talked about R-Value, energy consumption, acoustics, impact resistance… In the end, they turned a typical cold and dark double-brick duplex of the inner suburbs of Canberra, into a light groovy thermal fortress. 100mm panels were used on all first floor extensions, and deep timber frame was erected to give enough room for an insulative void between internal bats and the external cladding. Wide openings and high ceiling wasn’t going to make this a cold habitat! In conjunction with great insulation, bay windows were strategically oriented to collect most of the northern sun, which was stored within the mass of their polished concrete floor. The upper floor (cladded with the Masterwall) was rendered and textured with a tint added in the final mix, while the rest of the walls were finished smooth and then lightly sponged to create contrast between the 2 levels.

Architect: Paul Tilse

Builder: Igloo Building Systems / Peter Blumson

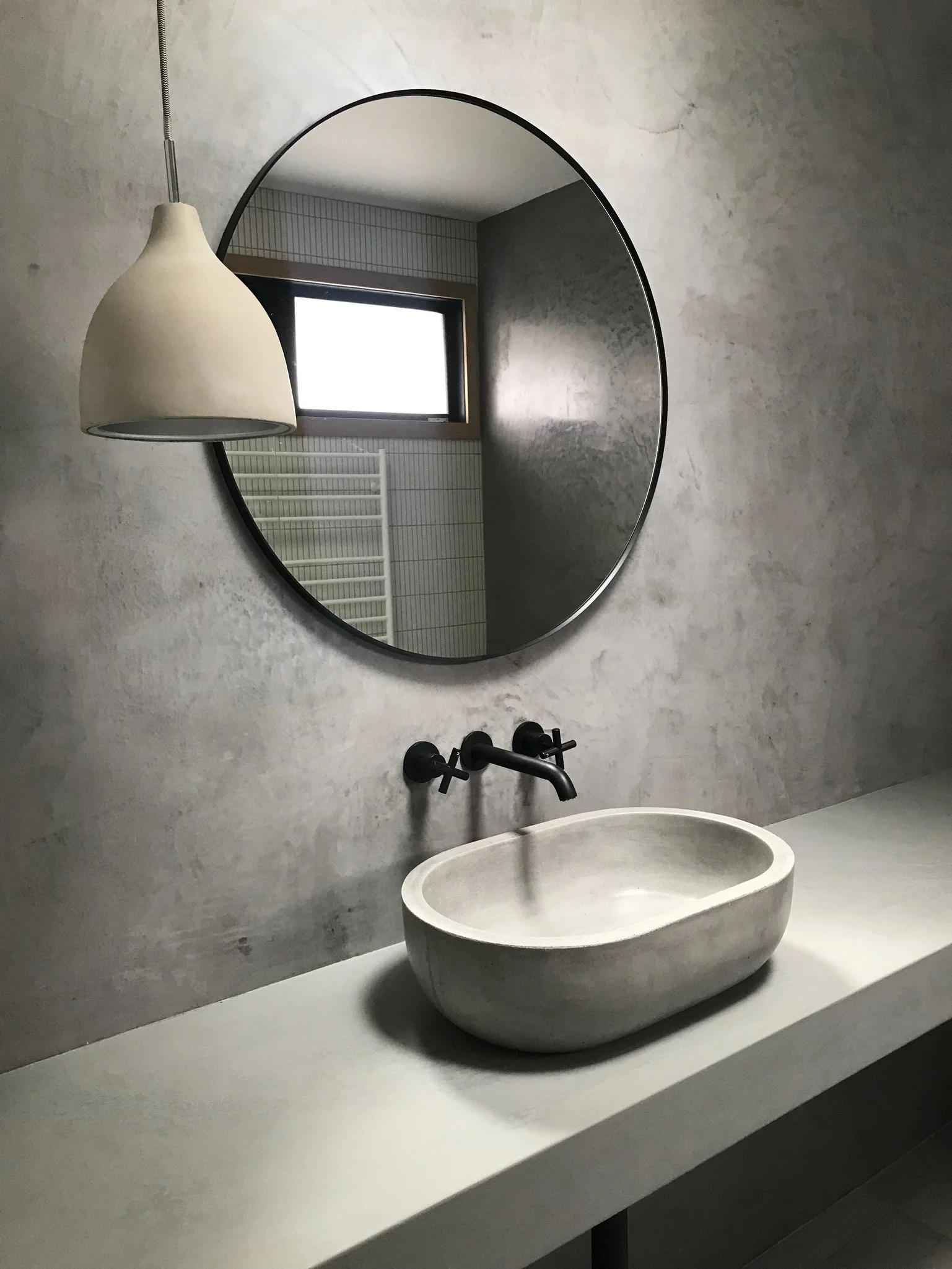

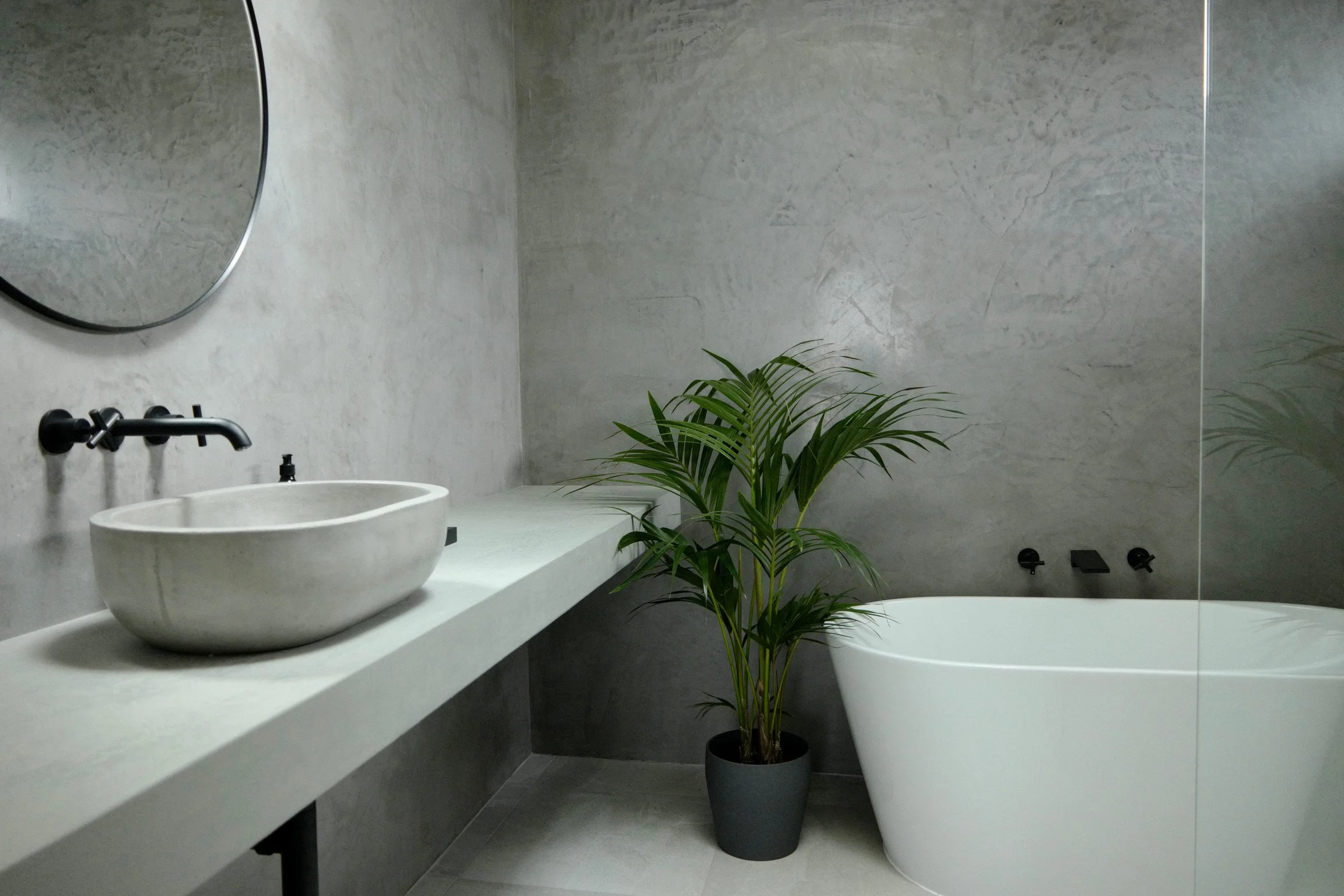

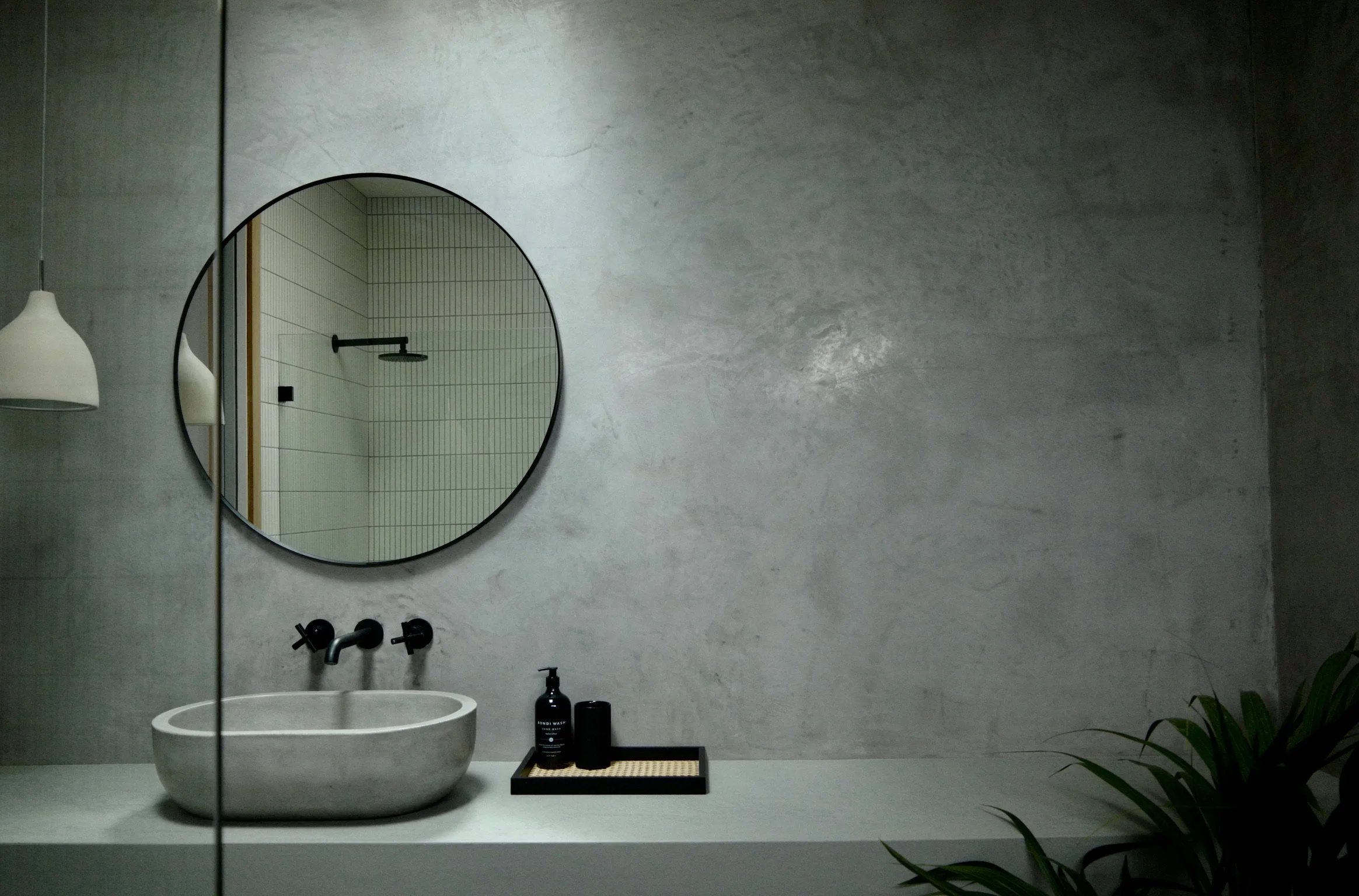

Finish: External façade finished with 1mm float finish - painted with matt acrylic paint. Bathroom walls: venetian lime render, protected with wax.

Ext. Clad: 100mm Masterwall on timber frame. Sun-hood in M-Grade  polystyrene, supported by steel brackets.

Architect: Paul Tilse Architects.

Builder: Brumec Constructions.

Finish: Cement / lime base top-coat with natural oxide pigments. A protective water-based sealant was rolled onto the walls to protect the finish ("Grano-Glase", from Granosite). It's expected that the colour and pattern will slowly develop over time, thus creating a unique patination that charactirise this type of hand-crafted render finish.

Substrates: 75mm Masterwall cladding on timber frame for all upper-floor areas, Brick on ground floor.

Finish: polished with a steel trowel, we used a fine polymer materials called "Dado" (from Nutex Coating) and we added black pigments to the mix for some of the walls.

Substrate: timber frame lined with cement sheeting.

Architect: Paul Tilse.

Builder: Preferred Builders

Finish: Matching heritage façade

Substrate: Brickwork

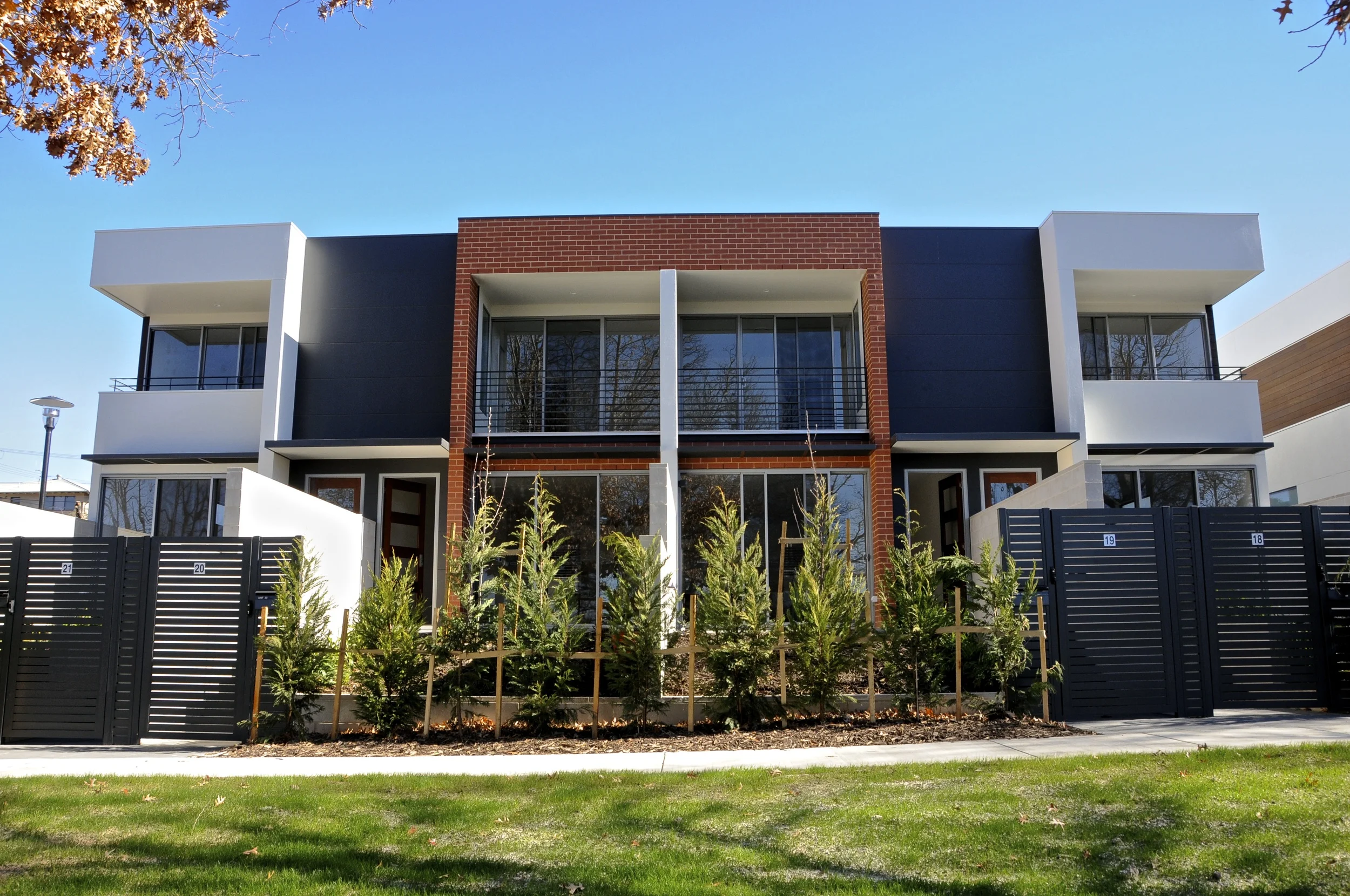

Architect: Paul Tilse Architects

Builder: Preferred builders

Finish: Dry Texture ("Marbletex", by Nutex), painted white (Colorbond Surfmist).

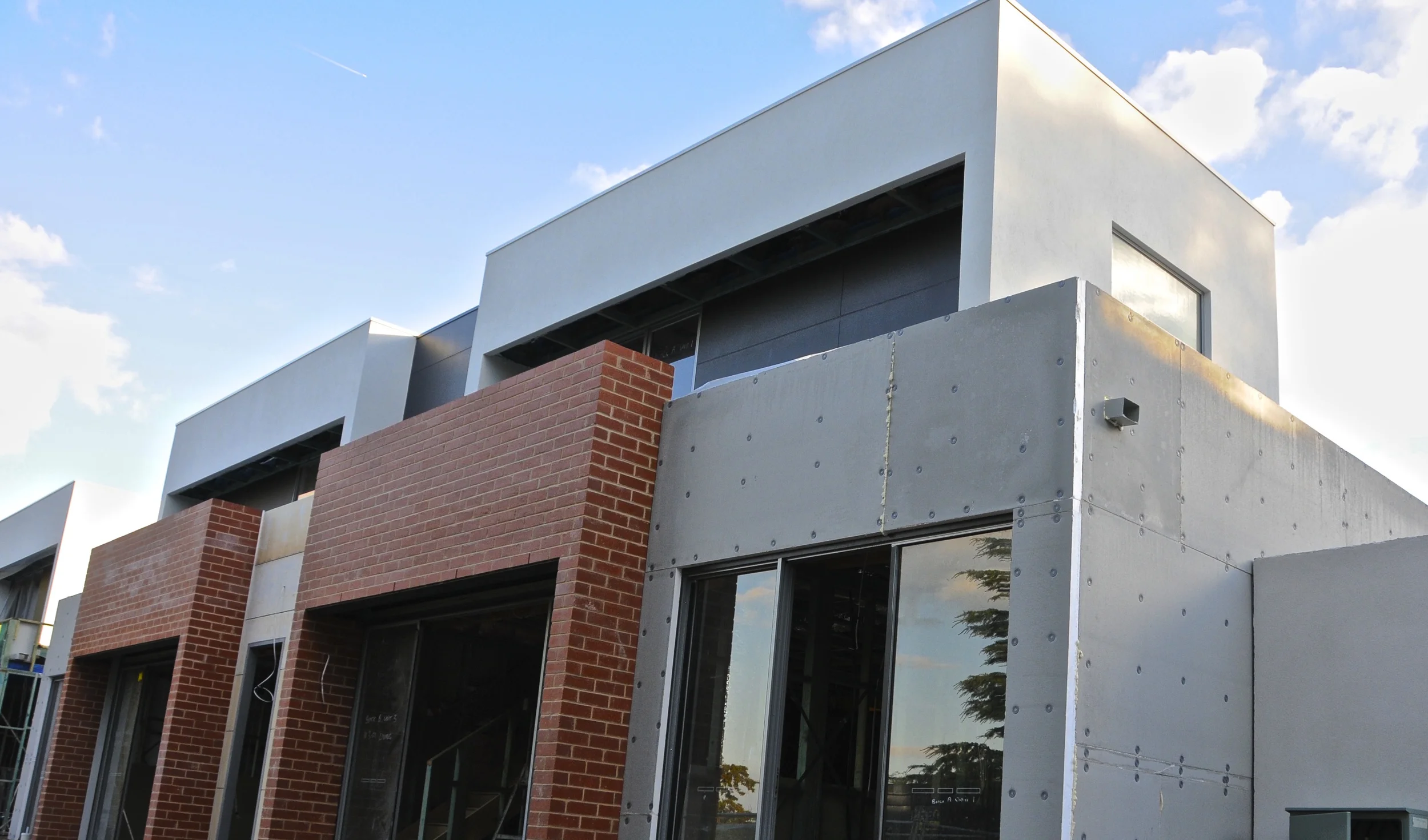

Substrate: 75mm Masterwall cladding on timber frame.

Architect: Thursday Architecture

Builder: D3 Projects.

Finish: 1mm Float finish

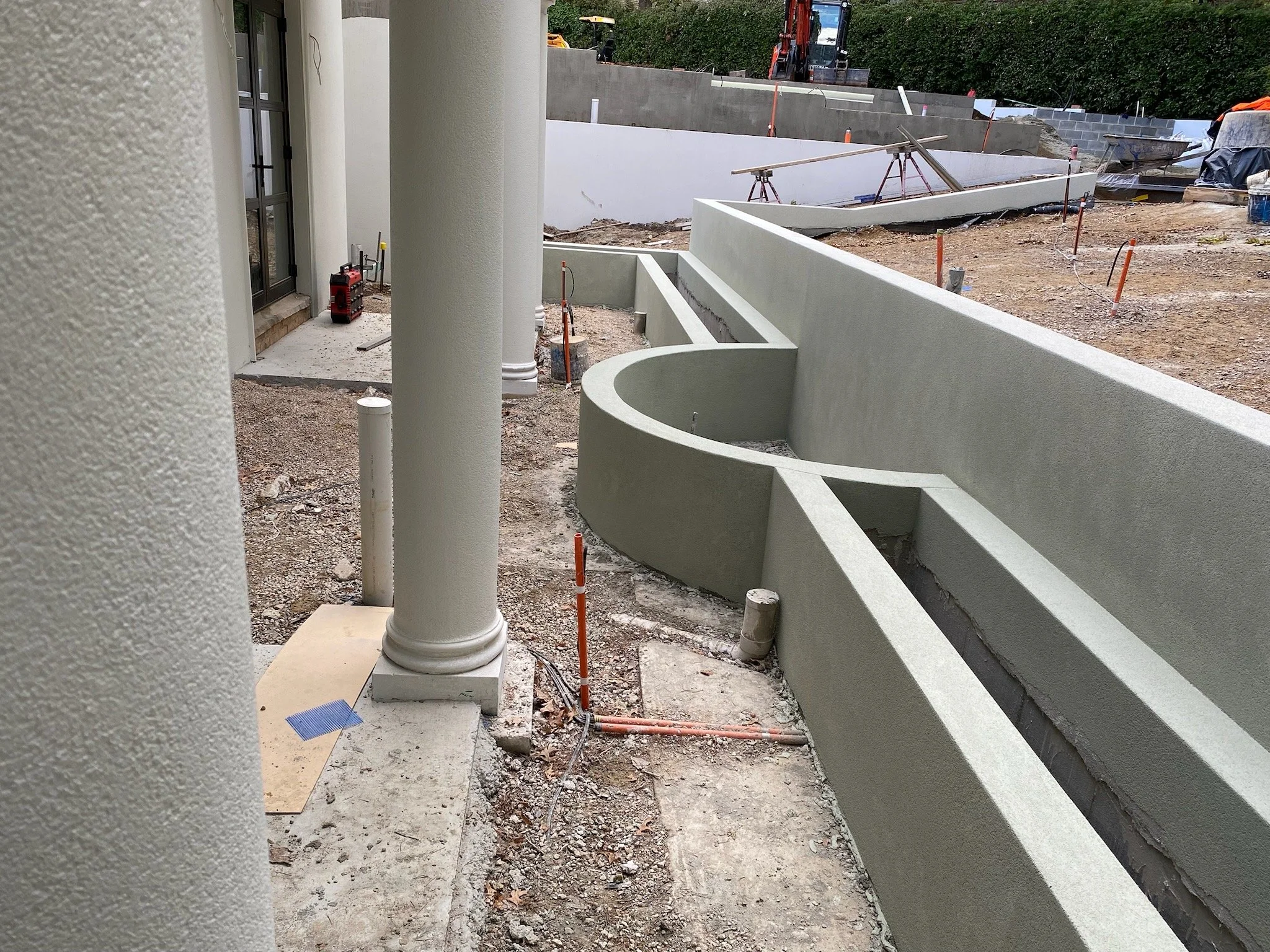

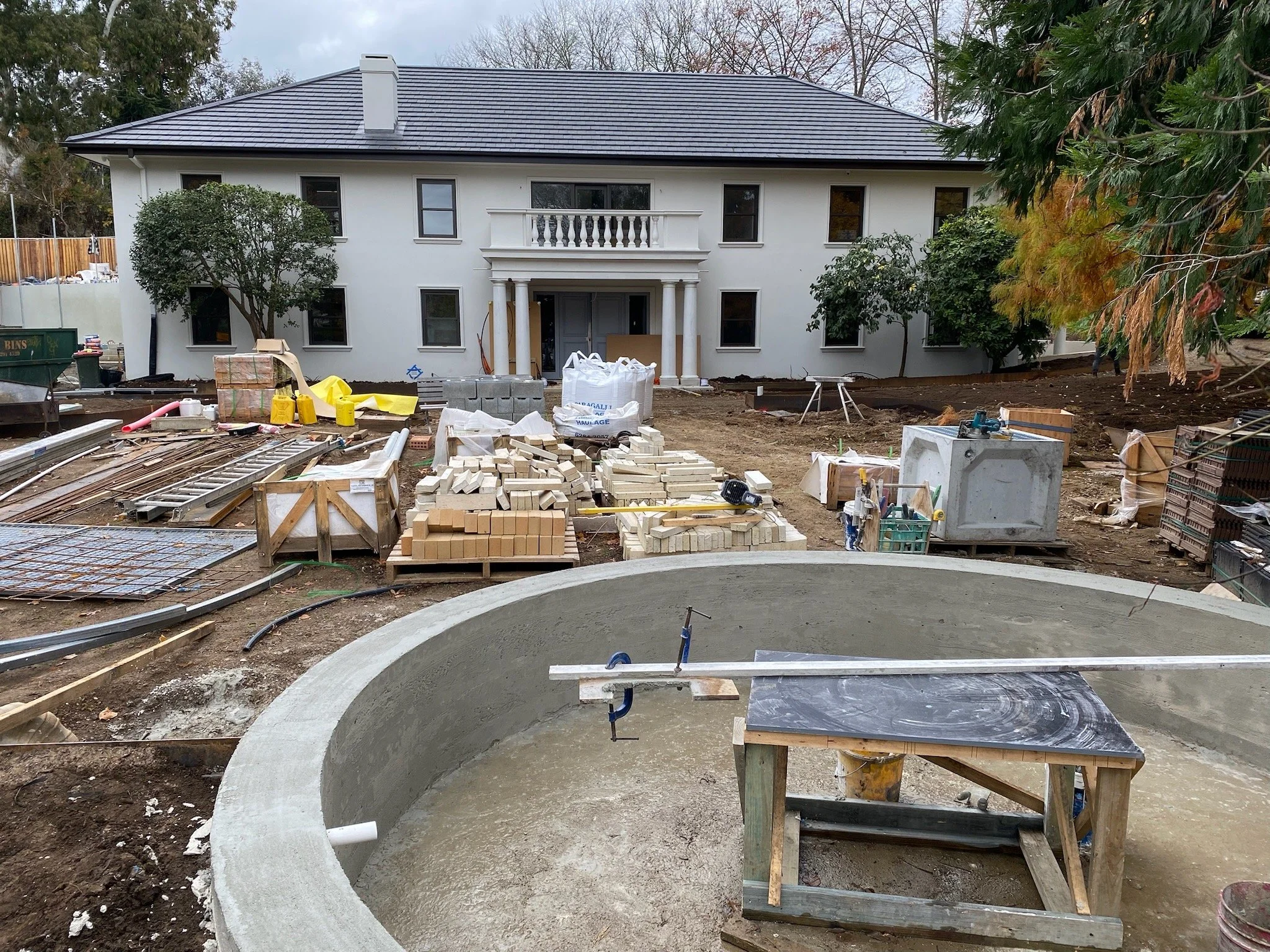

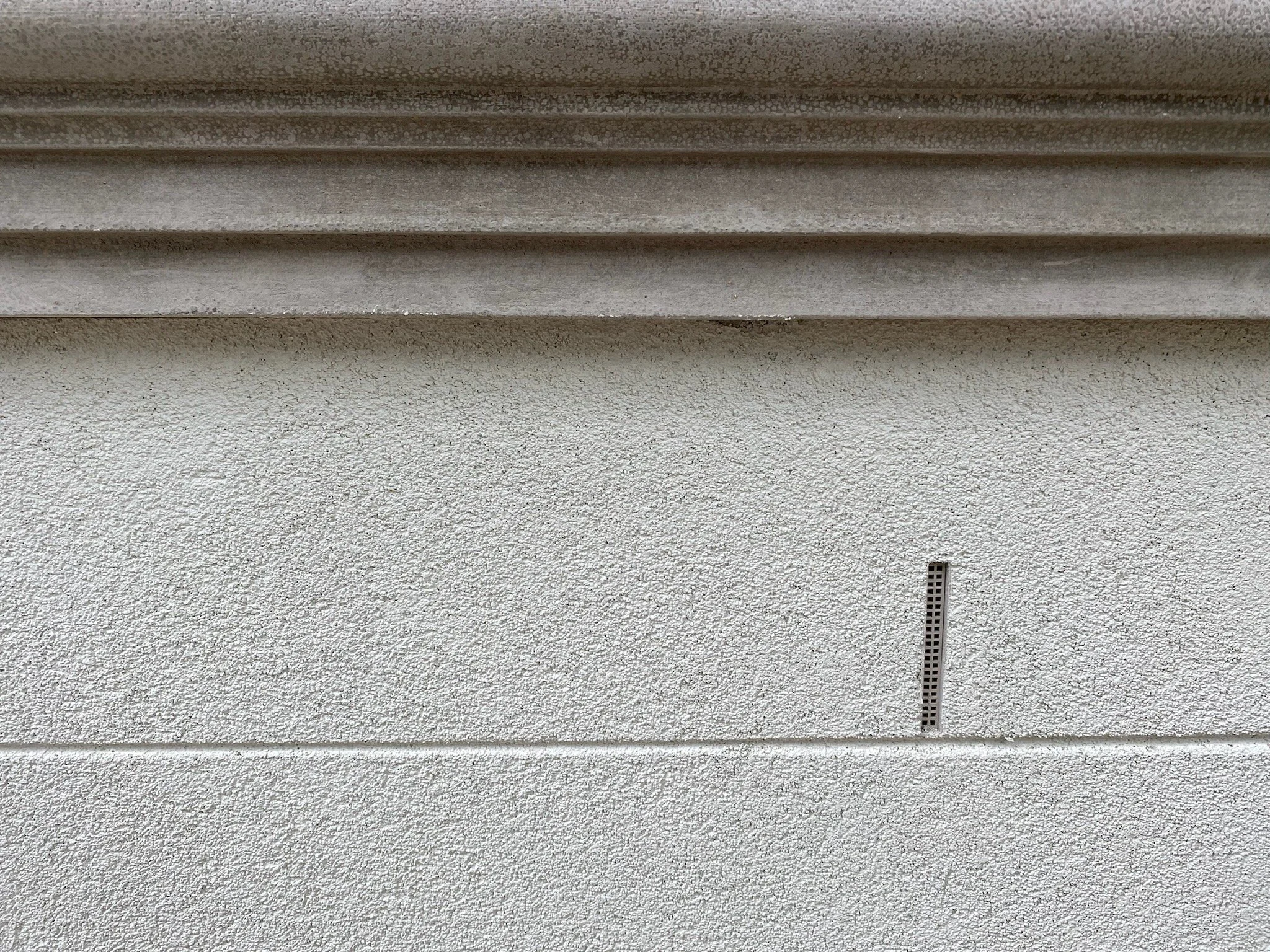

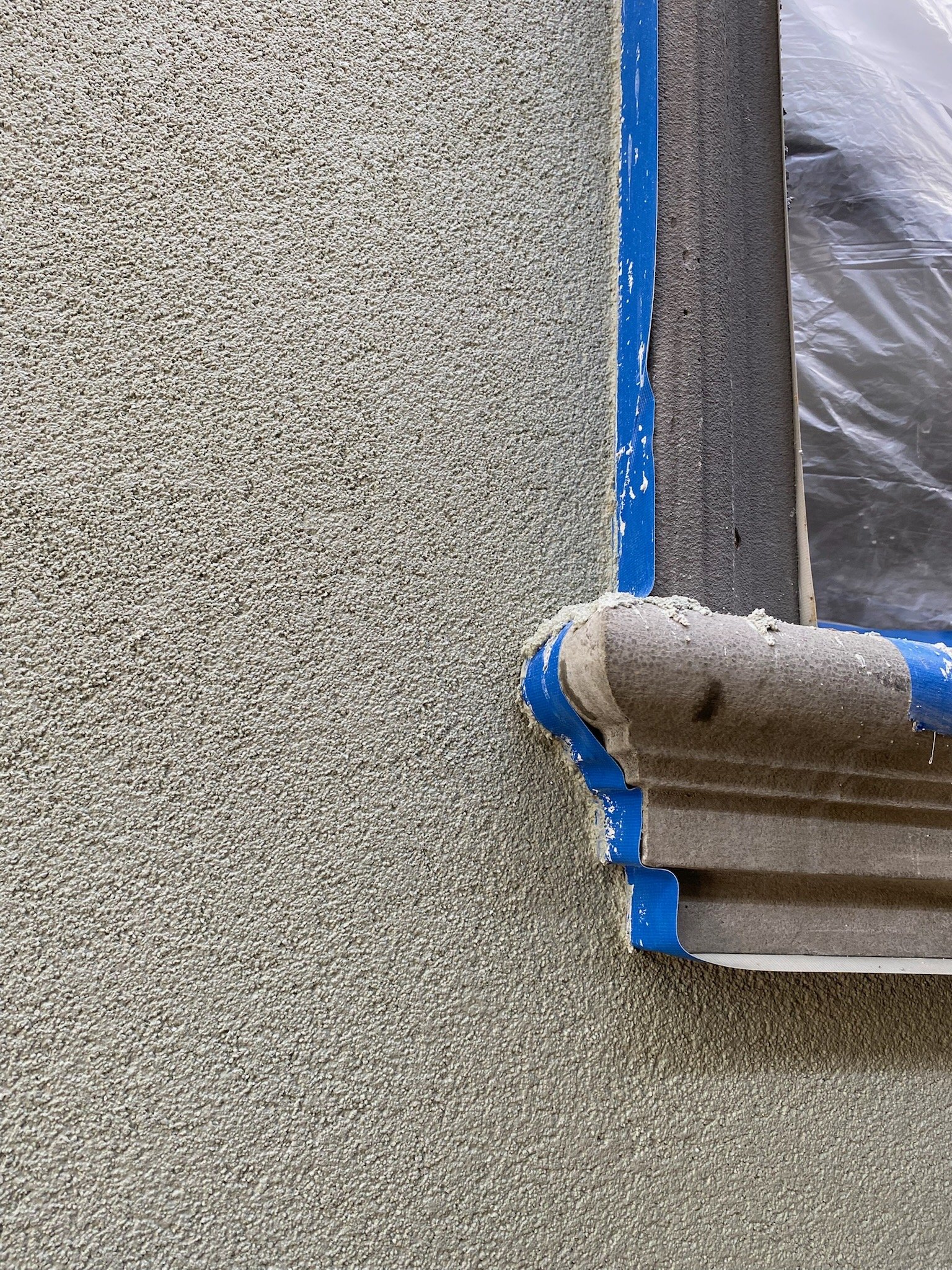

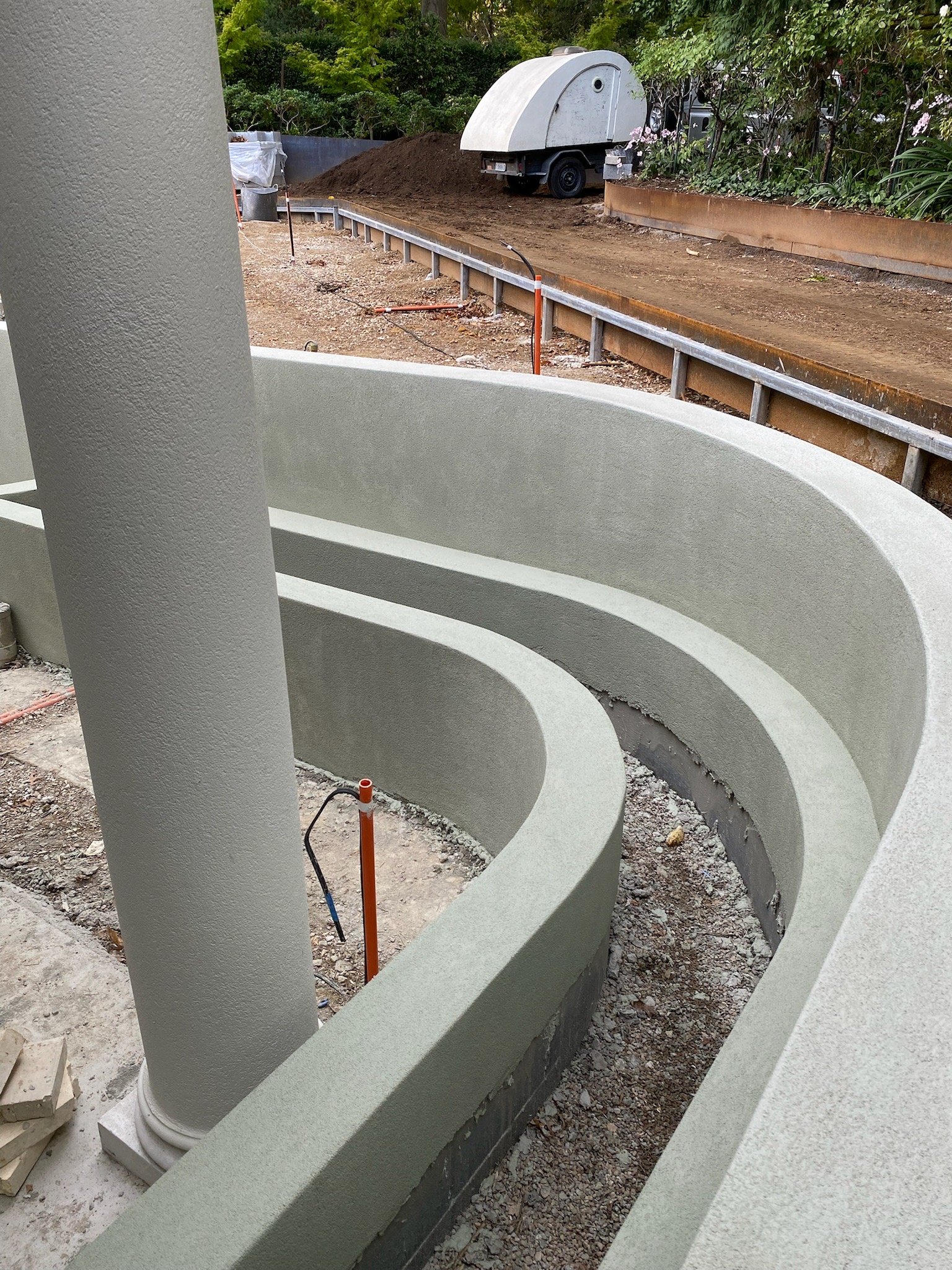

Substrates: Masonry, Concrete, Pre-cast Mouldings
